Application areas
Waterproofing for installation of "breathing" roofs. Repair of roofs without removal of old roof cladding.
Description of material

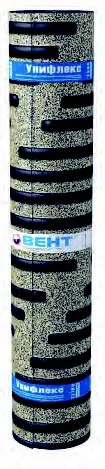

Uniflex VENT is a waterproofing sheet produced by placing a polymer-bitumen binder on a strong rot-proof polyester base or fiberglass. The ventilated surface has binder strips of a certain size, the space between which is filled with coarse-grained sand. When it is welded on, this design provides for the ability of a roof to "breathe" thus guaranteeing the absence of air bubbles, which results in a longer service life.
Uniflex VENT EKV is used to repair the roof without removal of old roof cladding. The coarse-grained dressing compound is applied to the face; the ventilated covering, to the welded-on side of the sheet.
Uniflex VENT EPV (TPV) is used as the bottom layers of two-layer roof cladding. A polymer film is applied to the top; the ventilated covering, to the welded-on side of the sheet.
Uniflex VENT can be used in all climatic zones (as determined in Construction Codes and Regulation (SNiP) 23-01-99*).
Method of application
The material is welded on a prepared surface using a gas burner. Material application: according to the Manual for Designing and Installation of "Breathing" Roofs Made of Technoelast VENT and Uniflex VENT Welded-On Roll-Fed Materials.
Storage
Store vertically, in a place protected from direct sunlight.
Prevents formation of "bubbles" on the roof
Waterproofing warranty — 8 years
Service life — 20-25 years
Types of material
Uniflex VENT TPV
Uniflex VENT EPV
Uniflex VENT EKV
Specifications:
Property | Uniflex VENT TPV | Uniflex VENT EPV | Uniflex VENT EKV | |
Thickness, mm (±0.1 mm) | 2,8 | 3,5 | 4,5 | |
Mass of 1 m2, kg, (±0.25 kg) | 3,2 | 4,0 | 5,5 | |
Longitudinal/transverse breaking load, N, not less than | polyester | - | 500/350 | 500/350 |
fiberglass | 800/900 | - | - | |
Bend point on R=25 mm beam, °C, no more than | -20 | -20 | -20 | |
Heat endurance, °С, not less than | 95 | 95 | 95 | |
Protective covering type | on the top | film without logo | film without logo | granulated material, slate |
on welded-on side | ventilated covering | ventilated covering | ventilated covering | |
Length / width, m | 10х1 | 10х1 | 8х1 |
